Custom CRSs

L.LatLng vs pixels

Internally, Leaflet converts map layers with LatLngs into HTML elements with pixel coordinates, so it needs a way of knowing which LatLng corresponds to which pixel and vice versa.

In web browsers, pixel use a cartesian system with its origin in the top-left. This is why, in Leaflet, pixel coordinates are L.Points with the form (x, y), where x is the distance right and y is the distance down.

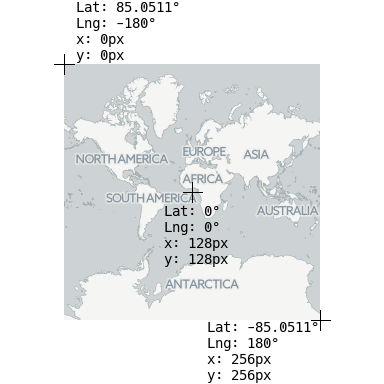

For example, in a default map at zoom level 0:


The CRS of the map is responsible for converting between LatLngs and pixel coordinates for any given zoom level. A CRS has two main functions to perform this: latLngToPoint and pointToLatLng. In the default CRS (L.CRS.EPSG3857) they work like this:

L.CRS.EPSG3857.latLngToPoint( L.latlng(0, 0), 0);	// Returns a L.Point with x=128, y=128
L.CRS.EPSG3857.latLngToPoint( L.latlng(85.0511, -180), 0);	// Returns a L.Point with x=0, y=0

L.CRS.EPSG3857.pointToLatLng( L.point(128, 128), 0);	// Returns a L.LatLng with lat=0, lng=0
L.CRS.EPSG3857.pointToLatLng( L.point(256, 256), 0);	// Returns a L.LatLng with lat=-85.0511, lng=180

The CRS also informs Leaflet of how large the map is (once again, for any given zoom level). The result is a L.Bounds containing a bounding box measuring pixels, or null if there is no bounding box (i.e. there is an infinite plane). For the default CRS, zoom level 0:

L.CRS.EPSG3857.getProjectedBounds(0);	// Returns a `L.Bounds` with min=(0, 0) and max=(256, 256)

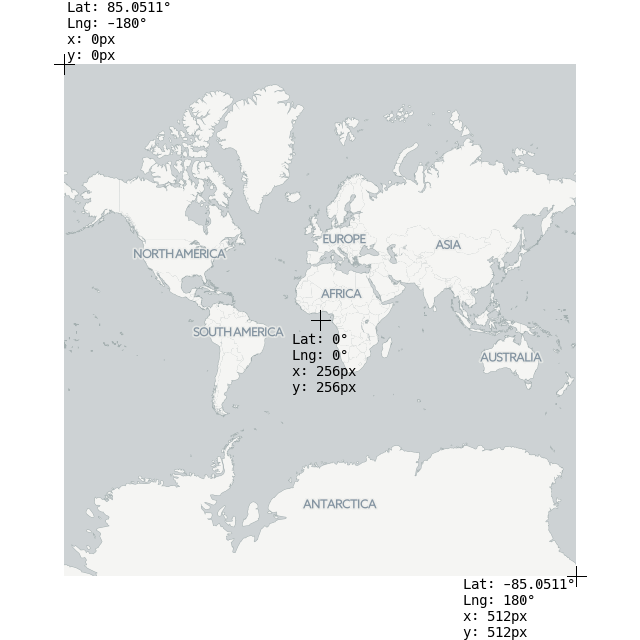

When you zoom in to zoom level 1, (by default) everything doubles in size.


L.CRS.EPSG3857.latLngToPoint( L.latlng(0, 0), 0);	// Returns a L.Point with x=256, y=256
L.CRS.EPSG3857.getProjectedBounds(1);	// Returns a `L.Bounds` with min=(0, 0) and max=(512, 512)

The CRS must also tell Leaflet how much things scale when changing through zoom levels. This is done with the scale and zoom functions:

L.CRS.EPSG3857.scale(0);	// How many arbitrary units are there in zoom level 0
L.CRS.EPSG3857.scale(1);	// How many arbitrary units are there in zoom level 1
// Note that L.CRS.EPSG3857.scale(1) is the double of * L.CRS.EPSG3857.scale(0)

When you use LatLngs in Leaflet, they magically get converted to pixel coordinates so things appear on the right location in your screen. Internally, Leaflet needs to set the position of map elements in pixels from the top-left of the map container

In Leaflet, the main mission of a CRS is to translate from map coordinates to screen pixel coordinates with two operations:

Polar coordinates

Leaflet does not only support latitude-longitude geographical coordinates or a simple grid, it can support any user-defined coordinate system.

For this tutorial, we’ll implement a polar coordinate system on an arctistic rendering of the Milky Way]():


We’ll follow the conventions on polar coordinate systems: the coordinates are ρ (greek letter rho) and φ (greek letter phi). For any point, ρ is the distance to the origin of coordinates, and φ the angle from the polar axis. In this tutorial we’ll make φ equal to the galactic longitude (counter-clockwise, with φ=0 pointing upwards). While φ is measured in degrees, ρ will be measured in light-years.

As seen in the CRS.Simple tutorial, LatLng doesn’t always make sense. We can easily create aliases for RhoPhi:

var RhoPhi = L.LatLng;	// Class constructor
var rhoPhi = L.latLng;	// Factory method

If you’re a math nerd, note that the following code is also valid Javascript:

var ΡΦ = L.LatLng;
var ρΦ = L.latLng;

We can create a minimal CRS with some defaults inherited from the abstract class L.CRS by using L.extend:

L.CRS.Galactic = L.extend({}, L.CRS, {
	latLngToPoint: function (latlng, zoom) {
		return L.point(...);
	},

	pointToLatLng: function (point, zoom) {
		return L.latLng(...);
	}
}

CRS.Simple

CRS stands for coordinate reference system, a term used by geographers to explain what the coordinates mean in a coordinate vector. For example, [15, 60] represents a point in the Indian Ocean if using latitude-longitude on the earth, or the solar system Krueger-Z in our starmap.

A Leaflet map has one CRS (and one CRS only), that can be changed when creating the map. For our game map we’ll use CRS.Simple, which represents a square grid:

var map = L.map('map', {
	crs: L.CRS.Simple
});

Then we can just add a L.ImageOverlay with the starmap image and its approximate bounds:

var bounds = [[0,0], [1000,1000]];
var image = L.imageOverlay('uqm_map_full.png', bounds).addTo(map);

And show the whole map:

map.fitBounds(bounds);

You can see this example stand-alone. It doesn’t quite work, as we cannot see the whole map after doing a fitBounds().

Common gotchas in CRS.Simple maps

In the default Leaflet CRS, CRS.Earth, 360 degrees of longitude are mapped to 256 horizontal pixels (at zoom level 0) and approximately 170 degrees of latitude are mapped to 256 vertical pixels (at zoom level 0).

In a CRS.Simple, one horizontal map unit is mapped to one horizontal pixel, and idem with vertical. This means that the whole map is about 1000x1000 pixels big and won’t fit in our HTML container. Luckily, we can set minZoom to values lower than zero:

var map = L.map('map', {
	crs: L.CRS.Simple,
	minZoom: -5
});

Pixels vs. map units

One common mistake when using CRS.Simple is assuming that the map units equal image pixels. In this case, the map covers 1000x1000 units, but the image is 2315x2315 pixels big. Different cases will call for one pixel = one map unit, or 64 pixels = one map unit, or anything. Think in map units in a grid, and then add your layers (L.ImageOverlays, L.Markers and so on) accordingly.

In fact, the image we’re using covers more than 1000 map units - there is a sizable margin. Measuring how many pixels there are between the 0 and 1000 coordinates, and extrapolating, we can have the right coordinate bounds for this image:

var bounds = [[-26.5,-25], [1021.5,1023]];
var image = L.imageOverlay('uqm_map_full.png', bounds).addTo(map);

While we’re at it, let’s add some markers:

var sol = L.latLng([ 145, 175.2 ]);
L.marker(sol).addTo(map);
map.setView( [70, 120], 1);

You can see this example stand-alone.

This is not the LatLng you’re looking for

You’ll notice that Sol is at coordinates [145,175] instead of [175,145], and the same happens with the map center. Coordinates in CRS.Simple take the form of [y, x] instead of [x, y], in the same way Leaflet uses [lat, lng] instead of [lng, lat].

(In technical terms, Leaflet prefers to use [northing, easting] over [easting, northing] - the first coordinate in a coordinate pair points “north” and the second points “east”)

The debate about whether [lng, lat] or [lat, lng] or [y, x] or [x, y] is not new, and there is no clear consensus. This lack of consensus is why Leaflet has a class named L.LatLng instead of the more confusion-prone L.Coordinate.

If working with [y, x] coordinates with something named L.LatLng doesn’t make much sense to you, you can easily create wrappers for them:

var yx = L.latLng;

var xy = function(x, y) {
	if (L.Util.isArray(x)) {    // When doing xy([x, y]);
		return yx(x[1], x[0]);
	}
	return yx(y, x);  // When doing xy(x, y);
};

Now we can add a few stars and even a navigation line with [x, y] coordinates:

var sol      = xy(175.2, 145.0);
var mizar    = xy( 41.6, 130.1);
var kruegerZ = xy( 13.4,  56.5);
var deneb    = xy(218.7,   8.3);

L.marker(     sol).addTo(map).bindPopup(      'Sol');
L.marker(   mizar).addTo(map).bindPopup(    'Mizar');
L.marker(kruegerZ).addTo(map).bindPopup('Krueger-Z');
L.marker(   deneb).addTo(map).bindPopup(    'Deneb');

var travel = L.polyline([sol, deneb]).addTo(map);

The resulting map looks pretty much the same, but the code is a bit more readable.
